Shipping container vessels are the giants of the seas, transporting millions of containers across oceans annually. These vessels are meticulously designed and loaded to ensure stability and prevent capsizing, which is crucial for the safety of the crew, cargo, and the environment. In this blog post, we will explore how shipping container vessels are constructed and loaded to maintain stability on the open ocean.
1. Understanding the Basics of Stability in Ships.
Before diving into the specifics of container vessels, it's essential to understand the basics of ship stability. Stability refers to a ship's ability to return to an upright position after being tilted by external forces such as waves or wind. Two key factors contribute to a ship's stability:
- Center of Gravity (CoG): The point where the ship's weight is concentrated. The lower the CoG, the more stable the ship.
- Center of Buoyancy (CoB): The center of the volume of water a ship displaces. When a ship tilts, the CoB shifts, creating a righting moment that helps the ship return to an upright position.
A ship's stability is maximized when its CoG is low and its CoB is positioned to provide a strong righting moment.
2. Building Container Vessels for Stability.
- Hull Design: The hull of a container vessel is its most crucial component. The hull is designed to be wide and deep, with a flat bottom, providing a large base that helps distribute weight evenly and lowers the CoG. The hull's shape allows the vessel to displace a significant amount of water, which increases the buoyant force acting on the ship and enhances stability. Modern container vessels also feature a double-hull design, which provides additional safety in case of a breach and improves overall stability by allowing for better distribution of ballast water.
- Ballast Tanks: Ballast tanks are integral to a container vessel's design. These tanks are located at the bottom of the ship and are filled with water to lower the CoG and increase stability. The amount of ballast water can be adjusted based on the cargo load and sea conditions to maintain optimal stability. By strategically managing ballast water, the vessel's operators can counteract any imbalance caused by uneven cargo loading or rough seas, ensuring the ship remains stable and upright.
- Structural Reinforcement: Container vessels are built with reinforced steel frameworks that provide structural integrity and resistance to the stresses caused by heavy cargo loads and harsh sea conditions. The hull and deck are reinforced with longitudinal and transverse beams that help distribute weight evenly and prevent deformation. The use of high-strength steel and advanced welding techniques further enhances the vessel's durability and stability, allowing it to withstand the forces of nature and the weight of thousands of containers.
3. Loading Containers to Ensure Stability.
Properly loading containers is just as important as the vessel's design when it comes to maintaining stability. The goal is to distribute the weight evenly and keep the CoG as low as possible. Here’s how it’s done:
- Container Weight Distribution: Containers are loaded in a specific order to ensure that the ship remains balanced. Heavier containers are placed at the bottom of the cargo hold and towards the center of the ship. This lowers the CoG and helps stabilize the vessel. Lighter containers are placed on top and towards the outer edges.The ship’s stability software calculates the optimal loading plan, taking into account the weight and size of each container, the vessel’s current ballast, and the expected sea conditions. This plan helps prevent any uneven distribution of weight, which could cause the ship to list (tilt) or capsize.
- Stacking and Lashing: Containers are stacked in a way that minimizes the risk of shifting during transit. The stacks are carefully arranged to ensure that the weight is evenly distributed, and the height of each stack is limited to maintain a low CoG. To prevent the containers from moving, they are secured with lashing rods and twist-locks. Lashing rods are metal rods that connect containers to each other and to the deck, while twist-locks are locking mechanisms that secure containers at their corners. This ensures that the containers remain in place even in rough seas.
- Load Monitoring and Adjustments: During the voyage, the ship's crew constantly monitors the vessel’s stability using advanced monitoring systems. These systems provide real-time data on the ship's draft (the distance between the waterline and the bottom of the hull), heel (tilt to one side), and trim (the difference in draft between the bow and stern).
If the ship begins to tilt or list, the crew can make adjustments by redistributing ballast water or, in extreme cases, shifting containers. These adjustments help maintain stability and prevent capsizing.
4. Technological Innovations for Enhanced Stability.
Modern container vessels are equipped with advanced technology to enhance stability and prevent capsizing:
- Stability Software: Advanced stability software assists in creating optimal loading plans by analyzing various factors, including cargo weight, sea conditions, and the ship's current ballast. This software provides real-time data and alerts the crew of any potential stability issues, allowing for quick corrective action.
- Autonomous and Remote-Controlled Ballast Systems: Some vessels are equipped with autonomous or remote-controlled ballast systems that can automatically adjust ballast water levels based on real-time data. These systems improve response times to changing sea conditions and help maintain stability more effectively than manual systems.

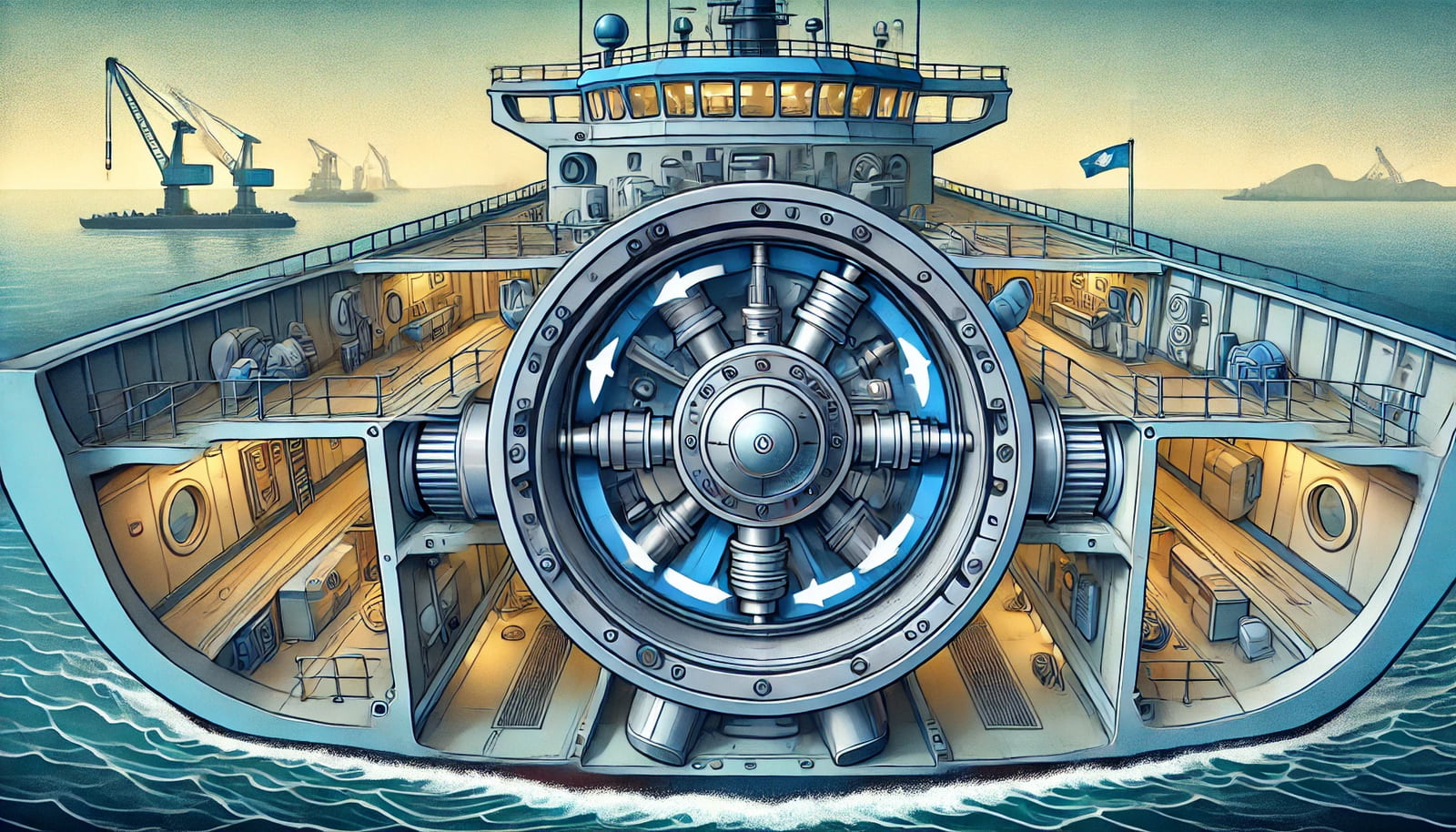

- Gyroscopic Stabilizers: Some container vessels use gyroscopic stabilizers to reduce rolling (side-to-side motion). These stabilizers use large spinning gyroscopes to create forces that counteract the ship's rolling motion, providing additional stability and comfort for the crew.
5. Conclusion:
The construction and loading of shipping container vessels are complex processes that require careful planning and precision. By designing vessels with stability in mind and using advanced technology to monitor and adjust balance, these ships are built to safely navigate even the roughest seas without capsizing.
The shipping industry's commitment to safety and innovation continues to evolve, ensuring that container vessels remain a reliable and efficient means of transporting goods across the globe. As technology advances, we can expect even more sophisticated systems to enhance stability and safety, making our oceans safer for all.
